280X Series Power Analyzers

Vitrek¡¦s XiTRON 280x Series Advanced Single- and Two-Channel Power Analyzers combine an unprecedented feature set with an ideal combination of precision, speed and ease-of-use in an instrument so economical it can be on every bench.

With an extended measurement range from micro-amps to hundreds of amps and millivolts to kilovolts, the 2801 & 2802 are the ideal analyzers for standby power or Energy Star testing. In addition to numerical results, the 2801 & 2802 captures waveforms with true 512-point precision. Results and waveforms can be displayed, read via communication ports or sent directly at full resolution to a USB printer. Power and amplitude measurements with an accuracy of <0.1% are automatically synchronized to the fundamental frequency. Peak, RMS, rectified and DC measurements of voltage, current and power are provided including continuous, inrush, startup and history modes, plus an integration mode for W-Hr, A-Hr, VA-Hr as well as integrated average power. (Channels can be operated synchronously or independently on the 2802). The 2801 and 2802 also provide waveform peak and glitch capture modes.

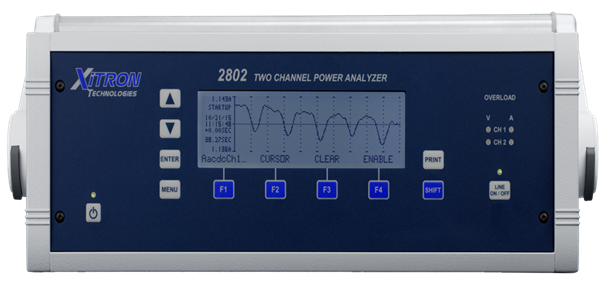

xitron vitrek 280x power analyzer front and back

 Description

280x Series Single- and Two-Channel Power Analyzers

With an extended measurement range from micro-amps to hundreds of amps and millivolts to kilovolts, the 2801 & 2802 are the ideal analyzers for standby power or Energy Star testing. In addition to numerical results, the 2801 & 2802 captures waveforms with true 512-point precision. Results and waveforms can be displayed, read via communication ports or sent directly at full resolution to a USB printer. Power and amplitude measurements with an accuracy of <0.1% are automatically synchronized to the fundamental frequency. Peak, RMS, rectified and DC measurements of voltage, current and power are provided including continuous, inrush, startup and history modes, plus an integration mode for W-Hr, A-Hr, VA-Hr as well as integrated average power. (Channels can be operated synchronously or independently on the 2802). The 2801 and 2802 also provide waveform peak and glitch capture modes.

Features

Product Features and Benefits

Highest Performance to cost ratio in the industry

Up to 2000V peak and 150A peak measurable internally (external CT capable)

2802 Model Equipped with Two Channels for independent or synchronous measurements, including input/out efficiency and loss

Base accuracy <0.08%. Current and voltage accuracies specified to less than 1mArms and 1Vrms respectively (<0.2%)

Measures & Displays volts, current, power frequency, harmonics (to the 100th), THD, PF, CF, K-Factor, Triplens, inrush, distortion, glitches and much more

Integrated line switch and inrush waveforms

Source or load measurements with wiring loss and voltage burden compensation

DC Charge and discharge measurements

Frequency range: DC and 20mHz-200kHz

Graphic Display shows numerical results, waveforms, bar graphs, startup and history charts with zoom & scroll features

16-bit A/D converters at 235ksps

12 User-configurable digital I/O

USB Flash Drive Support for data logging

Communications interfaces include: GPIB (IEEE488), RS-232, USB (host and device)

2802 Model suitable for AC, DC, 1-phase 3-wire, 2-phase 3-wire, 3-phase 3-wire, in out synchronous or independent measurements
